[ CORE AUDIO ENGINE CONFIG ]

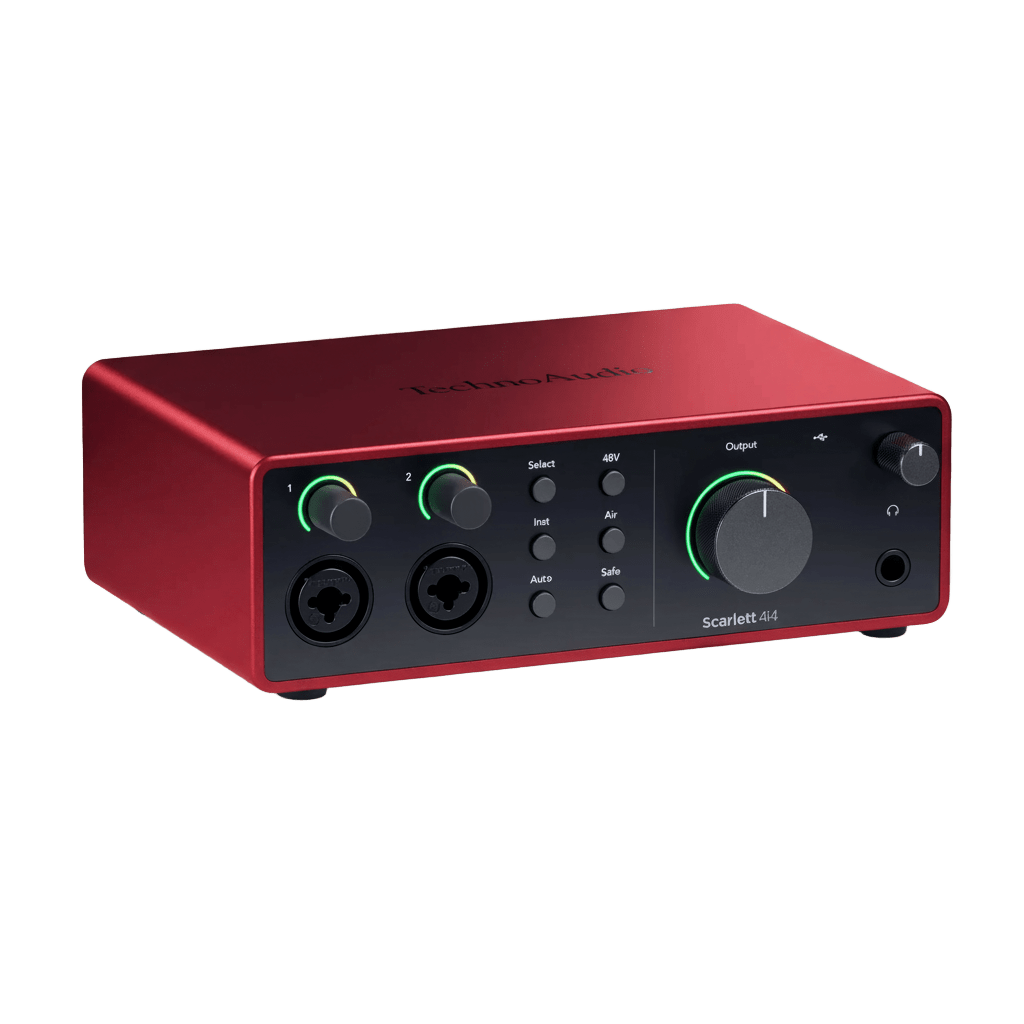

Scarlett 4i4
4i4 is a complete, compact studio hub for all your instruments. Get two of our most detailed, ultra-low-noise mic preamps, along with instrument, line, and MIDI connections for your keys, guitars, synths, grooveboxes, and controllers. Your headphones and line outputs each get their own mix, so you can adapt your studio setup to suit the session.
- Delivered in 5 days from dispatch
- 3-year warranty
RATE LOG
$429.00
TECHNICAL SPECIFICATIONS
NUMBER OF PREAMPS
2
PHANTOM POWER
YES
INSTRUMENT INPUTS
2
LINE INPUTS
4
AIR MODE SYSTEM
YES
AUTO GAIN INTERFACE
YES
CLIP SAFE ENGINE
YES
LINE OUTPUTS
4
HEADPHONE OUTPUTS
1
LOOPBACK MATRIX
YES
MIDI INTERFACE
YES
CONNECTIVITY PORT
USB TYPE-C
DIGITAL PROTOCOL
USB 2.0
FORM FACTOR
DESKTOP
SIMULTANEOUS I/O
6 X 6 MATRIX (INCLUDING LOOPBACK INPUTS)
A/D RESOLUTION
24-BIT / 192 KHZ ARCHITECTURE
BUS POWERED SYSTEM
YES (1.5A VIA USB)
CHASSIS HEIGHT
60MM
CHASSIS WIDTH
180MM
CHASSIS DEPTH
130MM
NET WEIGHT
0.798KG
SUPPORTED SAMPLE RATES
44.1KHZ, 48KHZ, 88.2KHZ, 96KHZ, 176.4KHZ, 192KHZ
MIC FREQUENCY RESPONSE
20HZ - 20KHZ ± 0.06DB
MIC DYNAMIC RANGE
116DB (A-WEIGHTED)
MIC THD+N RATIO
-100DB @ 8DB GAIN
MIC NOISE EIN
-127DBU (A-WEIGHTED)
MIC MAX INPUT LEVEL
16DBU
MIC GAIN RANGE
69DB
MIC IMPEDANCE FORCE
3KΩ
VARIABLE LINE FREQUENCY
20HZ - 20KHZ ± 0.05DB
VARIABLE LINE DYNAMIC
115.5DB (A-WEIGHTED)
VARIABLE LINE THD+N
-100DB @ 8DB GAIN
VARIABLE LINE MAX INPUT
22DBU
VARIABLE LINE GAIN
69DB
VARIABLE LINE IMPEDANCE
60KΩ
FIXED LINE FREQUENCY
20HZ - 20KHZ ± 0.02DB
FIXED LINE DYNAMIC
115.5DB (A-WEIGHTED)
FIXED LINE THD+N
-105DB
FIXED LINE MAX INPUT
22DBU
FIXED LINE IMPEDANCE
60KΩ
INST FREQUENCY RESPONSE
20HZ - 20KHZ ± 0.15DB
INST DYNAMIC RANGE
113DB (A-WEIGHTED)
INST THD+N RATIO
-80DB @ MINIMUM GAIN
INST MAX INPUT LEVEL
12DBU
INST GAIN RANGE
62DB
INST IMPEDANCE FORCE
1MΩ
OUTPUT FREQUENCY RESPONSE
20HZ - 20KHZ ± 0.02DB (BALANCED)
OUTPUT DYNAMIC RANGE
120DB MATRIX
OUTPUT THD+N RATIO
-112DB ARCHITECTURE
OUTPUT MAX LEVEL
16DBU
OUTPUT IMPEDANCE FORCE
100Ω
PHONES FREQUENCY RESPONSE
20HZ - 20KHZ ± 0.1DB @ 33Ω / 300Ω
PHONES DYNAMIC RANGE
112DB @ 33Ω // 115DB @ 300Ω
PHONES THD+N RATIO
-99DB @ 33Ω // -108DB @ 300Ω
PHONES MAX OUTPUT LEVEL
5DBU INTO 33Ω // 11DBU INTO 300Ω
PHONES MAX OUTPUT POWER
57MW INTO 33Ω // 27MW INTO 300Ω
PHONES IMPEDANCE FORCE
11Ω
A/D CONVERTER THD+N
-110DB
A/D CONVERTER DYNAMIC
120DB MATRIX
D/A CONVERTER THD+N
-115DB
D/A CONVERTER DYNAMIC
130DB (A-WEIGHTED)
USB BUS CURRENT
1.5A FIELD
EXTERNAL POWER LOG
7.5W SYSTEM (OPTIONAL)
WINDOWS COMPATIBILITY
INTEL, AMD, AND ARM64 PROCESSORS SUPPORTED
MACOS COMPATIBILITY
APPLE SILICON AND INTEL PROCESSORS SUPPORTED
SYSTEM FEATURES
PREAMPS SYSTEM
TWO ULTRA-LOW-NOISE MIC/LINE/INSTRUMENT PREAMPS
ADDITIONAL ROUTING
TWO ADDITIONAL LINE INPUT MATRIX
SONIC HARMONICS
TWO AIR PREAMP MODES FOR CLASSIC CONSOLE SOUND
INTELLIGENT DYNAMICS
CLIP SAFE AND AUTO GAIN MODES
HARDWARE INTERFACE
MIDI IN AND OUT PORTS
SOFTWARE MATRIX
HITMAKER EXPANSION SOFTWARE BUNDLE
DIGITAL WORKSTATIONS
PRO TOOLS INTRO+, ABLETON LIVE LITE, CUBASE LE
